60 W, Triple Output AC-DC Power Supply 2156719-H

2156719-H
2156719
Used
X-Ray
GE HealthCare
GE HealthCare
GE HealthCare
N/A
Outright
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Accepts universal input 85-264 VAC
  • 3" x 5" footprint
  • Remote sense on main output
  • Built-in EMI filter

Other Buying Options


Condition: New

Product Overview

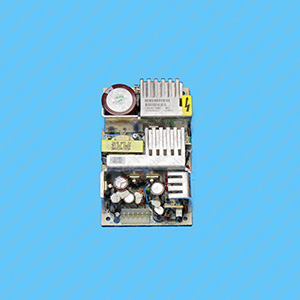

This is a specially designed low voltage power supply module which converts AC input voltage into DC voltage. It is an open frame, 60 W continuous output power supply with three outputs of +5 VDC, +15 VDC and -15 VDC. The power supply accepts universal input of 85-264 VAC or 120-300 VDC. This power supply has been designed to minimise the no load power consumption and maximise efficiency in order to facilitate equipment design to the latest environmental legislation. This compact switch-mode power supplies feature main output overvoltage protection and remote sense, with short-circuit protection on all outputs. It provides 60 watts of output power with free air convection cooling, and 80 watts with 30 CFM of forced air. This power supply is compatible to be used with GE's Signa Series Magnetic Resonance Imaging (MRI) Systems.

  • Additional Features

    • Low output ripple
    • Adjustable main output
    • Overvoltage protection
    • Overload protection
    • 110 KHz switching frequency
    • Compact Size

    Compatible Products

    Signa Excite 1.5T

    Signa Excite 1.5T

    Signa HD 3.0T

    Signa HD 3.0T

    Signa HD 1.5T

    Signa HD 1.5T

    Signa HDx 3.0T

    Signa HDx 3.0T

    Signa HDxt 1.5T

    Signa HDxt 1.5T

    Signa HDx 1.5T

    Signa HDx 1.5T

    Signa HDxt 3.0T

    Signa HDxt 3.0T

    Precision 500D

    Precision 500D

    Robust, digital performance at an efficient dose
    It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.

    Equivalent Part :

    Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

    Equivalent partPart Details
    2156719

    POWER SUPPLY AC-DC TRIPLE 60 WATTS 5.POWER SUPPLY 220 VOL
