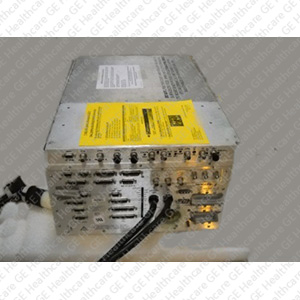

#550020 System Support Module 2160200-43

2160200-43
New
Magnetic Resonance Imaging
GE HealthCare
GE HealthCare
GE HealthCare
N/A
Exchange - Return Defective

GE HealthCare will accept, for return from customer, items that are in new condition, unworn, unaltered and free of damage. Items cannot be returned or exchanged beyond 30 days from customer&rsquo

Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Drivers are controlled via the software control mode
  • All DC supplies are capable of operating at no load
  • Efficient
  • Reliable

Other Buying Options


Condition: Used
Condition: Refurbished

Product Overview

The System Support Module consists of the dynamic disable function, the power monitor function, and the patient handling power module which has various power supplies used for patient handling functionality. The dynamic disables/TR driver function provides the DC bias signals needed for switching the various transmit switches needed in the Signa system. It also gets the unblank signal from the Signa system, which is then sent to the RF amplifier for unblanking, purposes. The dynamic disables function, also detects errors (open & shorted diodes in the switches) and sends the information back to the host. There are 3 sets of dynamic disable drivers that provides the required voltage or current, depending on mode selection, to 8 dynamic disable switch functions and the direct drive. The power monitor monitors the amount of forward RF power going to the patient. This function samples the amount of power going out to the patient, processes the signal and determines the maximum power level, pulse width and duty cycle of the transmitted pulse. The power monitor samples forward power within 5 ft or 0.2 dB from the point of RF generation. There would be two identical functions for redundancy. The patient handling power supply functionality provides all the power supply capability needed to operate the patient handling functions such as the dock assembly, table, shroud displays, etc. The peripherals that get power from this function are Scan Room Interface, Dock Assembly, Bore Light, Patient Alignment, Lights, PAC, Bore Vent Fan (comfort fan) and Gradient Cooling Fan. The patient handling power supply function supplies DC as well as AC power to various entities that reside in the magnet room.

Compatible Products

Signa Excite 1.5T

Signa Excite 1.5T
